Tel-Tru BQ500 5″ Glow Dial with 4″ Stem — Frequently Asked Questions
What is the Tel-Tru BQ500 5″ Glow Dial (4″ Stem)?

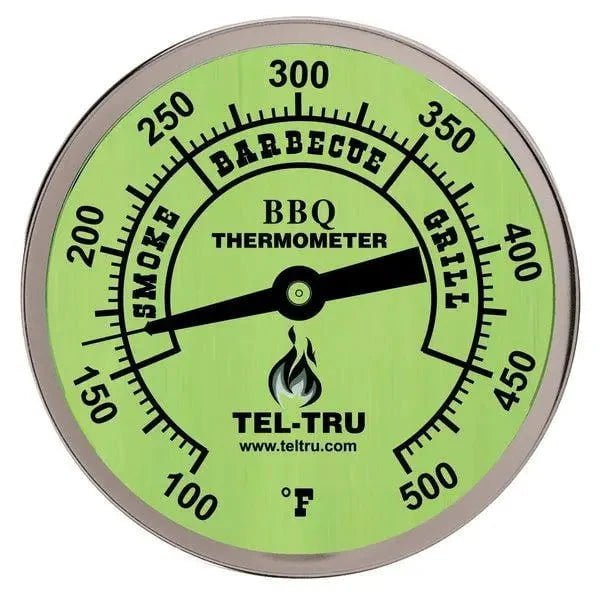

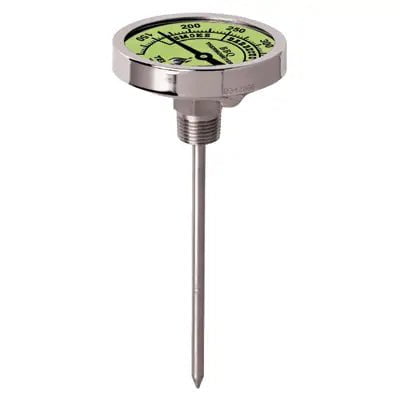

The Tel-Tru BQ500 5″ Glow Dial with 4″ Stem is a BBQ / smoker dial thermometer featuring a backlit “glow in the dark” dial for night readability. It’s designed to be installed into a 7/8″ hole and used to monitor cooking chamber temperatures between 100 °F and 500 °F.
What are its key specifications?
• Dial size: 5″ glow dial face
• Stem length: 4″
• Temperature range: 100 °F to 500 °F
• External parts: 304 stainless steel
• Lens: glass dial cover
• Mounting: fits into 7/8″ drilled hole (installation kit may be required)
How do I install and use it?
1. Drill or use an existing 7/8″ diameter hole in the lid or wall of your smoker.
2. Insert the 4″ stem through the hole, and secure with the nut included (or use an installation kit for thin metal)
3. Orient the dial for easy reading.
4. As the cooking chamber heats, the pointer will move across the 100–500 °F range.
5. At night or in low light, use the glow dial for visibility.
6. Periodically check calibration (if applicable) and clean the glass lens for clarity.
What are the advantages and considerations?
Advantages:
• Glow dial allows reading in dim or nighttime conditions.
• Durable stainless steel and glass build for longevity.
• Good temperature range for most smoking and grilling tasks.
• Straightforward installation in standard 7/8″ holes.
Considerations / cautions:
• The glow effect may fade over many years—don’t expect permanent brilliance.
• Ensure the stem is fully in the cooking chamber and doesn’t touch food or flame.
• Glass lens is susceptible to impact—handle carefully.
• For thin metal lids, you may need an installation kit to ensure a proper seal.
• As with all analog thermometers, occasional calibration checks are recommended.
