Coyote Insulated Jacket For Double Side Burner

Coyote Insulated Jacket for Double Side Burner Frequently Asked Questions

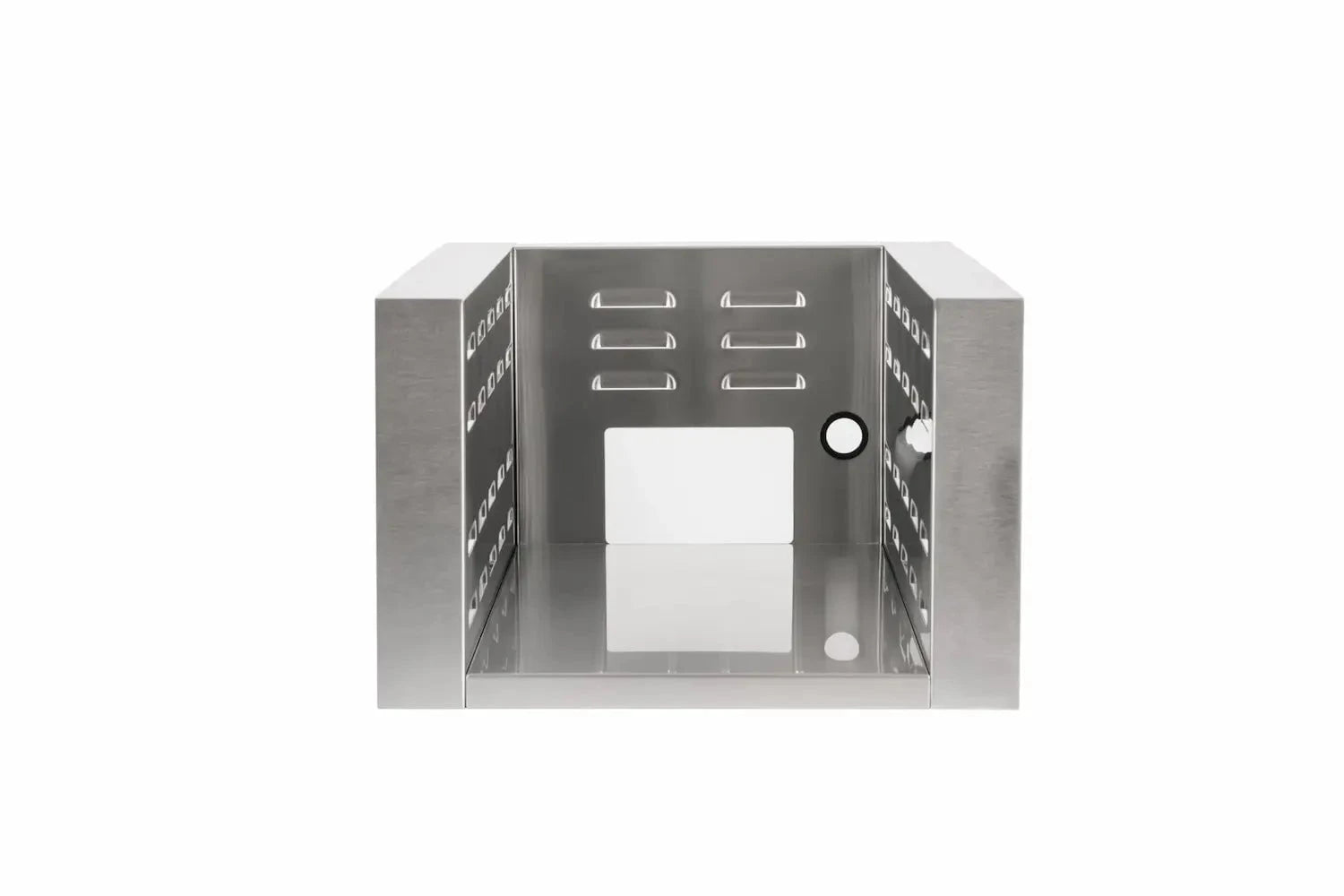

What is the CJAKTC1DB Insulated Jacket?

This is a safety accessory from Coyote designed for use when installing their double side burner (models C1DB or C3DB) into an outdoor kitchen island that includes combustible materials. It provides a stainless steel liner that helps protect surrounding surfaces from heat.

What are the dimensions (overall and cut-out) and what material is it made from?

• Overall Dimensions: **11″ H × 17″ W × 23″ D**
• Cut-Out Dimensions (minimum opening needed): **11″ H × 15½″ W × 22¼″ D**
• Material: 304-grade stainless steel, approx. 18 gauge

Which models is this jacket compatible with?

This insulated jacket is made for the Coyote Built-In Double Side Burner models C1DB or C3DB. Use the jacket only with those approved burner models.

Why do I need this insulated jacket?

Many building or fire codes require an insulated liner or jacket when installing burners into cabinetry or islands made of combustible materials. The jacket helps shield cabinetry from heat, improve safety, and ensure proper ventilation of heat from burners.

Any installation or safety tips I should consider?

Ensure your island cut-out meets or exceeds the required dimensions. Allow airflow and venting around the sleeve. Use stainless hardware for mounting. Verify there is no direct contact with combustible materials. Periodically inspect for heat damage or warping. Ensure all installation follows local building and fire safety codes.
