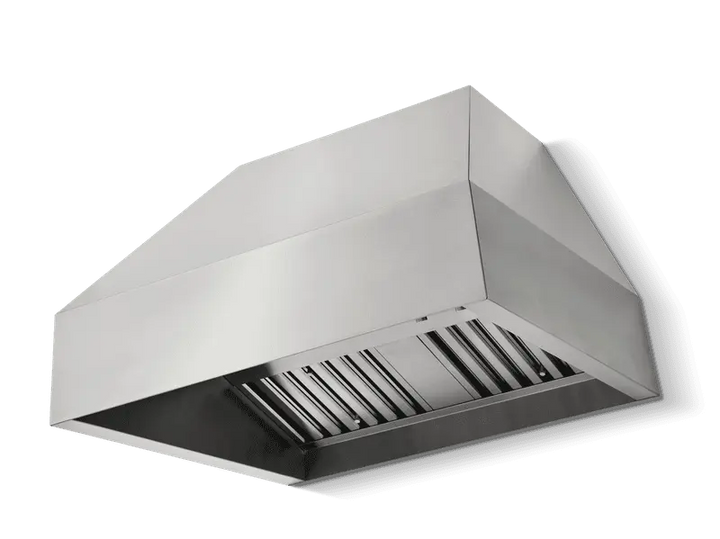

Tradewind P7200 Series Pyramid Wall-Mount Outdoor Hood, Hood Only

Trade-Wind P7200 Series Pyramid Wall-Mount Outdoor Hood (Hood Only) Frequently Asked Questions

What are the key dimensions and smoke-capture features of this hood?

The P7200 Series Pyramid Wall-Mount Hood offers a front-to-back depth of 32″ at the bottom, a 15″ depth at the top of the canopy, and a height of 24″ — creating a large capture zone designed to cover wide outdoor grills and prevent smoke escape.

What materials, filters and construction quality does it include?

This hood is constructed of commercial-grade #304 stainless steel (22-gauge) for outdoor durability. It includes a double bank of stainless steel baffle filters that are dishwasher-safe, making maintenance easier while delivering better grease capture.

What blower/venting options are available given this is “hood only”?

Since this version is hood-only, it requires a separate blower (in-line or remote) to complete the ventilation system. The spec sheet indicates optional in-line blower capability (~1,266 CFM) and compatibility with internal blower models (1,200 CFM for smaller widths; 2,300 CFM for larger widths) when selecting the internal-blower variant.

What are the installation and venting considerations I should plan for?

You will need to ensure proper ductwork, discharge termination, and canopy clearance. For example, top round discharges are typical (10″ or 2 × 10″ depending on width) and the telescoping duct cover adjusts for ceilings up to 10′ (with 12′ option). Conversion from vertical to horizontal ducting is possible.

What kind of maintenance is required to keep it performing well?

Regularly remove and clean (or dishwasher) the stainless steel baffle filters, wipe down stainless exterior surfaces, ensure the duct/vent path remains clear, and plan the blower selection and maintenance separately since it’s not included with the hood only version.

Who is this hood best suited for and what should I consider before purchasing?

This roof/ceiling-mounted pyramid wall-mount hood is ideal for outdoor kitchens that use large built-in grills or multiple burners and require serious ventilation capacity. For smaller standalone grills or minimal cooking loads, a simpler wall-mount hood may suffice and offer better value.
