What kind of warranty and safety certifications does it have?

The Infratech W-4024 Series Single Element 61.25" Infrared Electric Patio Heater, 240 Volt is constructed from durable stainless steel and is ETL-listed for safety when installed as directed. It includes a manufacturer’s warranty (see the All Things Barbecue product page for current warranty length and specific terms) for added peace of mind.

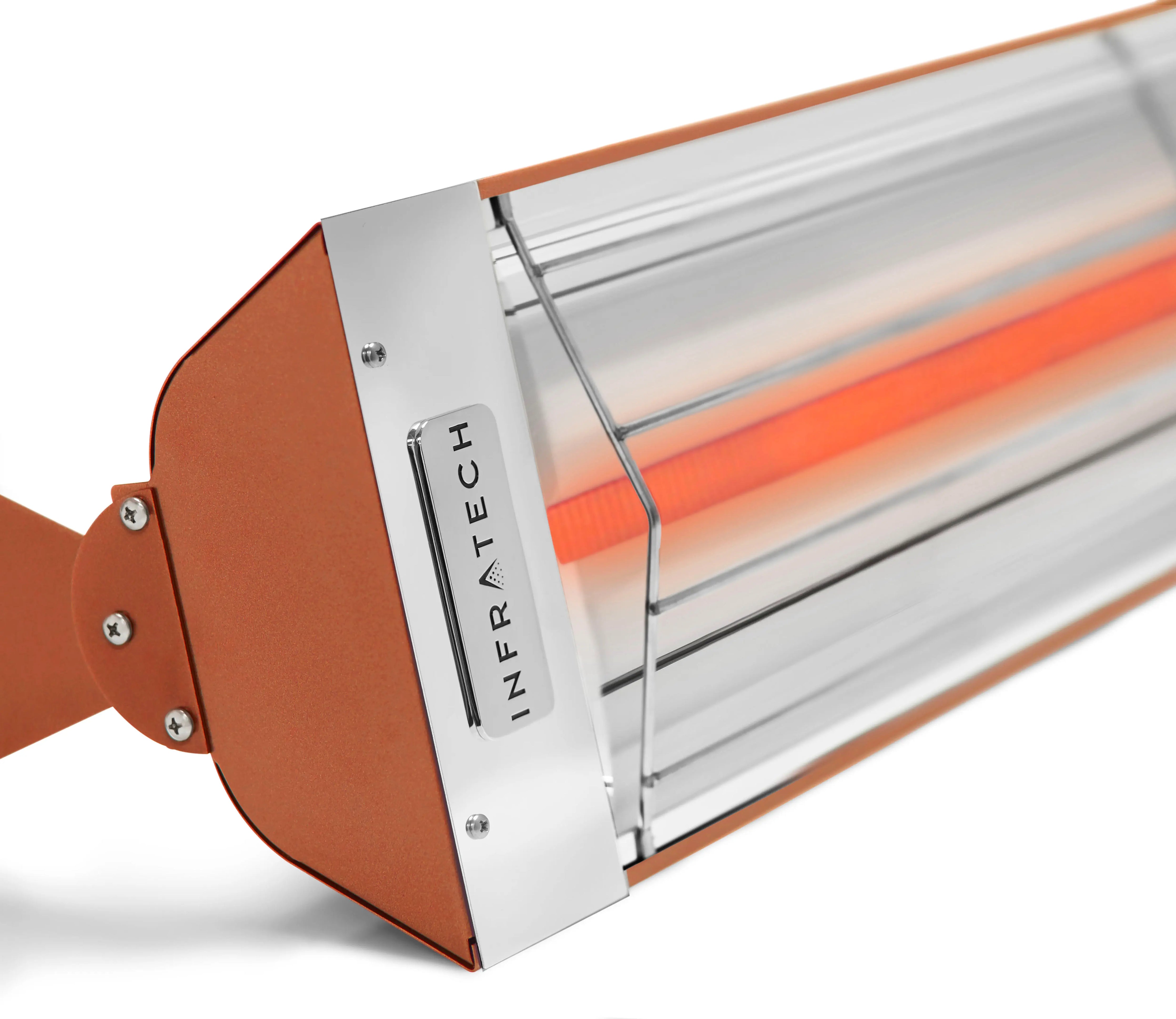

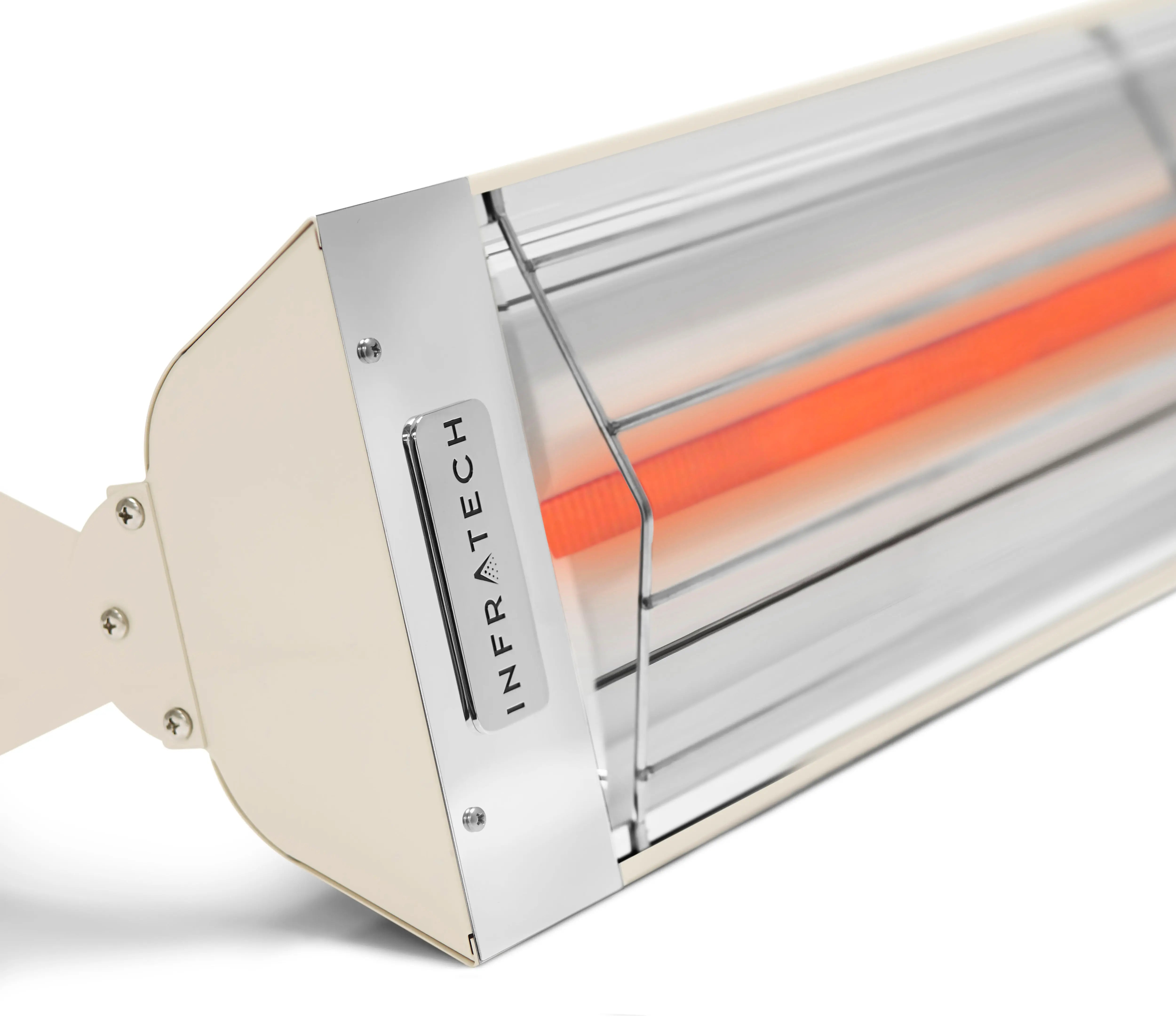

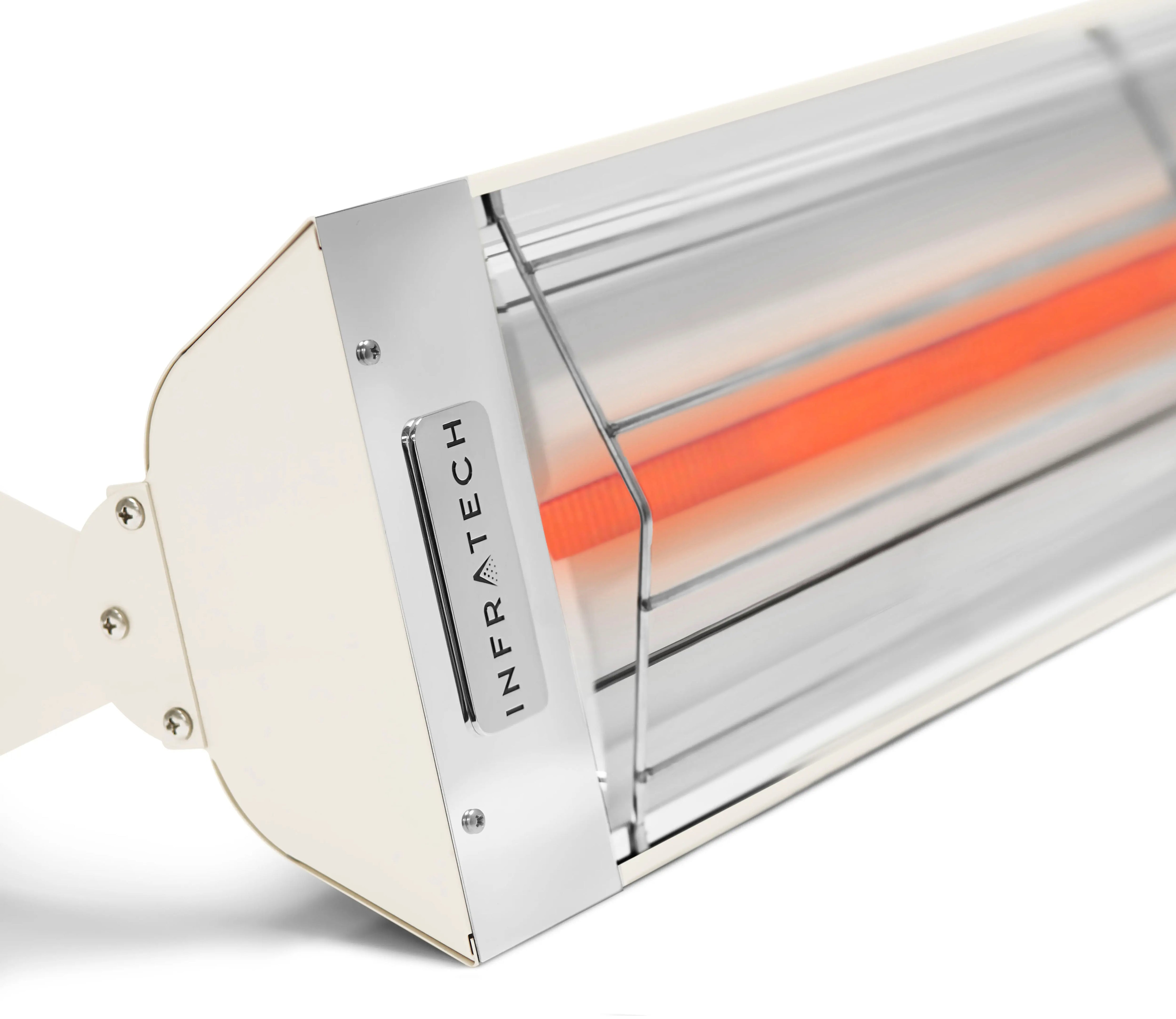

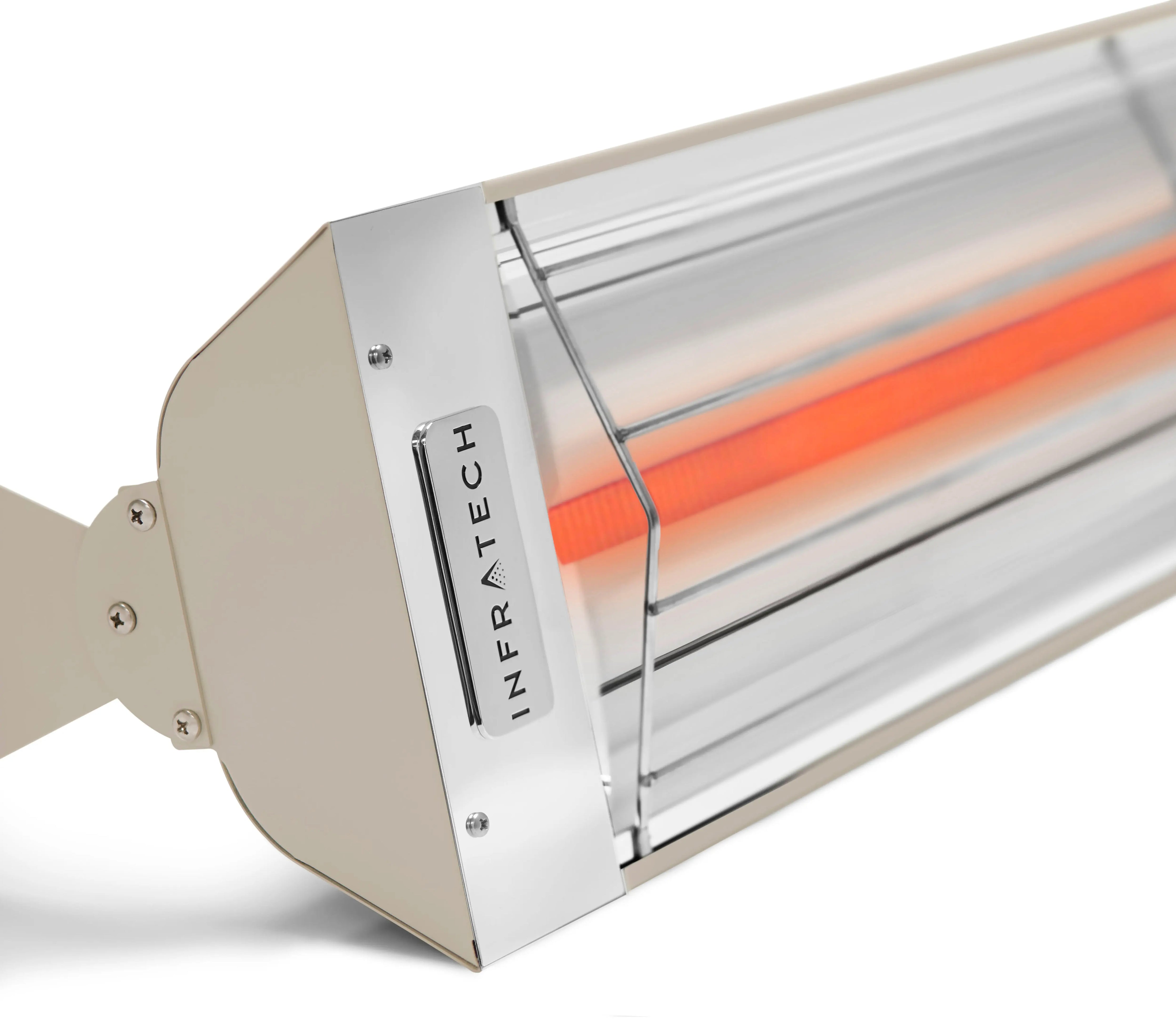

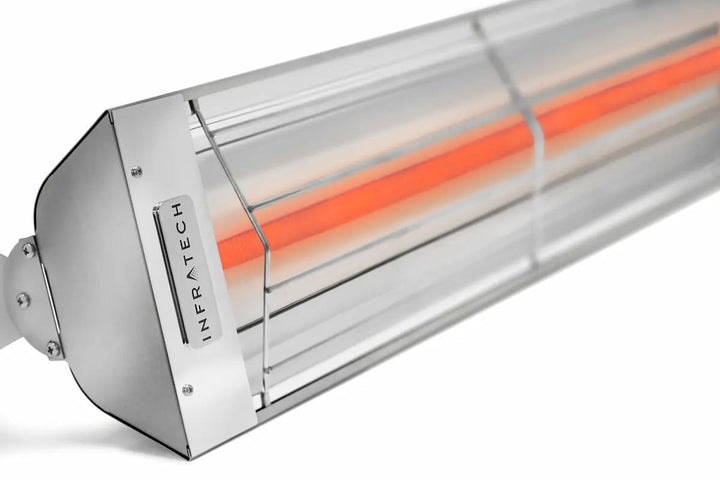

Infratech Single Element 61.25" Infrared Patio Heater, 240V

Home
Patio Heaters
Infratech W-4024 Series Single Element 61.25" Infrared Electric Patio Heater, 240 Volt

Product Details

Delivers high-performance heating in a streamlined, low-profile design. Engineered for larger areas, this single-element heater provides 4,000 watts of power, making it an ideal solution for residential patios, commercial outdoor spaces, and indoor applications. The W-4024 emits clean, even heat through its quartz heating element, offering energy-efficient warmth for spaces up to 10’ x 10’. Its polished stainless steel housing not only enhances durability but also seamlessly integrates into a variety of architectural styles.

Designed for flexibility and long-lasting use, the W-4024 can be wall- or ceiling-mounted and offers silent, maintenance-free operation with no moving parts. With its eco-friendly performance, zero emissions, and robust construction, this heater is built to withstand the elements while delivering consistent comfort. Whether you’re extending outdoor gatherings or enhancing indoor spaces, the W-4024 combines functionality and style for reliable warmth.

Features

High-powered 4,000-watt single-element heating for larger spaces.
Energy-efficient quartz element for consistent and even heat.
Compact and low-profile design for sleek integration into any space.
Silent operation with no moving parts for hassle-free performance.
Eco-friendly with zero carbon emissions.
Durable stainless steel construction suitable for indoor and outdoor environments.
Multiple mounting configurations for versatile installation (kits sold separately).
ETL-listed for safety and performance compliance.

Specifications

Model: Infratech W-4024 Electric Heater
Wattage: 4,000 watts
Voltage: 240V
Mounting Options: Wall or ceiling mount (kits sold separately).
Dimensions: 61.25” L x 8” W x 4.75” H
Weight: 15 lbs
Heating Element: Single quartz tube
Coverage Area: Up to 10’ x 10’
Construction: Stainless steel
Warranty: 1-year manufacturer’s warranty

Specifications FAQ

Infratech W-4024 Series Single Element 61.25" Infrared Electric Patio Heater, 240 Volt Frequently Asked Questions

What is the Infratech W-4024 Series Single Element 61.25" Infrared Electric Patio Heater, 240 Volt?

The Infratech W-4024 Series Single Element 61.25" Infrared Electric Patio Heater, 240 Volt is a high-output, single-element infrared electric heater that delivers 4,000 watts of radiant heat. It’s designed for residential patios, commercial outdoor areas, and select indoor applications where clean, even warmth and a low-profile look are important.

How much area does this 4,000-watt heater cover?

When properly installed, the W-4024 can comfortably warm an area up to approximately 10' x 10'. Coverage will vary depending on mounting height, ambient temperature, wind exposure, and how enclosed your space is, but this model is engineered for larger seating or dining zones that need focused, even heat.

What are the key specifications and electrical requirements?

This heater is rated at 4,000 watts and 240 volts, drawing approximately 16.7 amps. The fixture measures about 61.25" L x 8" W x 4.75" H and weighs roughly 15 lbs. A dedicated 240-volt circuit and correctly sized breaker are required, and installation should always be completed by a qualified electrician in accordance with local codes.

Where and how can I mount the Infratech W-4024 heater?

The W-4024 can be wall-mounted or ceiling-mounted using the appropriate brackets and hardware. It features a streamlined, stainless steel housing that integrates well with many architectural styles. Always follow the manufacturer’s mounting height and clearance requirements to ensure safe, efficient performance.

Is this heater energy efficient and eco-friendly?

Yes. As an infrared electric patio heater, the W-4024 emits clean, even heat with zero direct emissions. The single quartz heating element focuses warmth on people and objects instead of just heating the air, helping improve efficiency in outdoor and semi-enclosed spaces while keeping operating costs and maintenance low.

Compare

Compare Infratech heater series. This view highlights the W Series.

Feature / Series

W Series

WD Series

CD Series

Models Included (From URLs)

W-1512
W-3024
W-4024

WD-5024

WD-5224

WD-6024

CD-5224

CD-6024

Element Design

Single element

Dual element

Voltage Options (Models Provided)

120V
240V

240V

Power (Models Provided)

1,500W
3,000W
4,000W

5,000W

6,000W

5,000W

6,000W

Dimensions (Models Provided)

33" L x 8.5" W x 4" H
61.25" L x 8.5" W x 4" H
61.25" L x 8" W x 4.75" H

39" L x 8" W x 4" H

61.25" L (full WxH not listed for every model provided)

48" L x 8" W x 4" H

61.25" L x 8" W x 4" H

Weight (Models Provided)

15 lbs (listed for one model provided)

—

Heating Coverage (Models Provided)

Up to 50 sq ft
Up to 100 sq ft
Up to 10' x 10'

Up to 140 sq ft

Up to 160 sq ft

All Lengths Offered (Models Provided)

33"
61.25"

39"

48"

61.25"

48"

61.25"

Mounting Options (Models Provided)

Wall mount
Ceiling mount
Flush mount (on select models provided)

Wall mount

Ceiling mount

Flush mount

Wall mount

Ceiling mount

Flush mount

Heating Element Type / Life

Single quartz tube (listed for one model provided)

Quartz heating element

Approximately 5,000 hours (listed for one model provided)

Quartz heating element

Approximately 5,000 hours (listed for one model provided)

Efficiency / Emissions

Zero carbon emissions (listed for one model provided)

Over 90% efficient (listed for one model provided)

No harmful emissions, odorless heat (listed for one model provided)

Over 90% efficient (listed for one model provided)

No harmful emissions, odorless heat (listed for one model provided)

Certifications (Models Provided)

ETL-listed (listed for one model provided)

UL listed (listed for one model provided)

Recommended Mounting Height

—

10' to 14' (listed for one model provided)

Mounting Angle Range

—

0° to 60° (listed for one model provided)

Control Compatibility (Models Provided)

Wall-mounted switches
Timers
Home automation (on select models provided)

Wall-mounted controls

Timers

Smart home automation systems

Wall-mounted controls

Timers

Home automation systems

Warranty (Models Provided)

3-year
3-year
1-year

3-year manufacturer’s limited warranty
